At some point, new or old chainsaw owners have likely asked, “are chainsaw bars interchangeable?” Of course, that depends on a few factors, including the brand and size. You will need to consider these if you want to utilize a new chainsaw model with the old bar. Otherwise, you could end up damaging the tool.

What is Chainsaw Bar Oil? (2022 Upd...
What is Chainsaw Bar Oil? (2022 Update)

This article further explores the idea behind interchanging your chainsaw bar and the varying types.

1. Are Chainsaw Bars Universal?

Chainsaw in action.

Chainsaw in action.

But, no.  Chain bars are not universal because they have varying sizes and shapes that fit into the chainsaw. In this case, the chain gauge and pitch should be equivalent to the chain and engine size. For this reason, any bar will not correctly mount with other chainsaws.

2. Factors That Determine the Interchangeability of a Chainsaw Bar

The following factors determine whether the bar matches the chain type and can mount on the saw.

·        Bar sizing


This image represents a chainsaw bar.

This image represents a chainsaw bar.

Various chainsaw models must have an identical bar size as the original bar. You can check the bar information stamp to determine if it meets those specifications. Other methods include checking the bar’s length and width via a measuring tape.

·        Bar mount

Bar mounts typically have similar slots and holes on many bar models. Therefore, the rod mounting type needs to match the guide rod. Even incompatibilities with one another then, mount adapters fit together.

·        Chain pitch

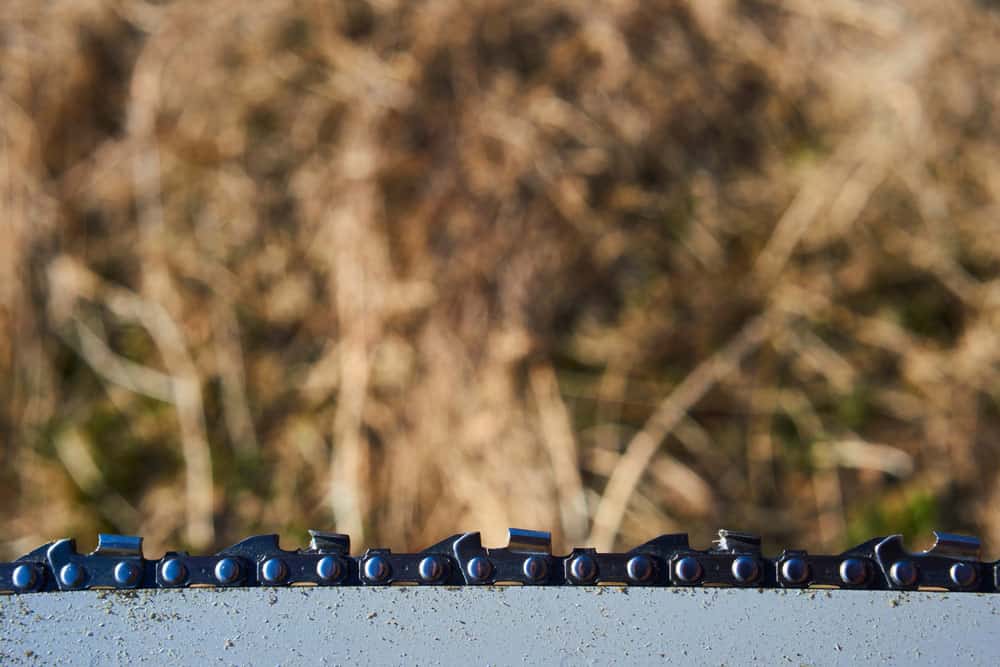

Close-up image of a chainsaw chain.

Close-up image of a chainsaw chain.

Chain pitch, which must match the guiding bar, chain, and power head, references the chain link length. Its size also demonstrates how well a chainsaw works.

·        Chain gauge

The chain gauge represents the drive link’s overall thickness. A chain link equips with a guide bar groove found on the chainsaw bar. It should also have a snug fitting for stability purposes. The chainsaw chain gauge and bar gauge must match the guide bar groove.

3. Are Chainsaw Bars Interchangeable Depending on Their Type?


A chainsaw bar needs to have an identical size to the chainsaw.

A chainsaw bar needs to have an identical size to the chainsaw.

Yes, different bar types are interchangeable on a particular saw model. However, they can impact performance due to their construction and nose type. We will take a look at the various bar types and their structures below:

·        Solid vs. laminated bar

A solid bar consists of steel, making them highly durable and heavy. Plus, it won’t need constant repairs and replacement due to its damage resistance. You can also utilize it for severe work applications, especially when it requires a bar less than 18 inches in length.

Meanwhile, a laminated bar has multiple steel layers, forming a unique bar. Laminated bars offer durability and flexibility with a lightweight structure, suggesting they can sustain damage. So they may require repairs or replacement after a while due to chain stop occurring from each steel layer spreading. This happens via welding, rivets, or both techniques.

·        Sprocket nose vs. complex nose bar

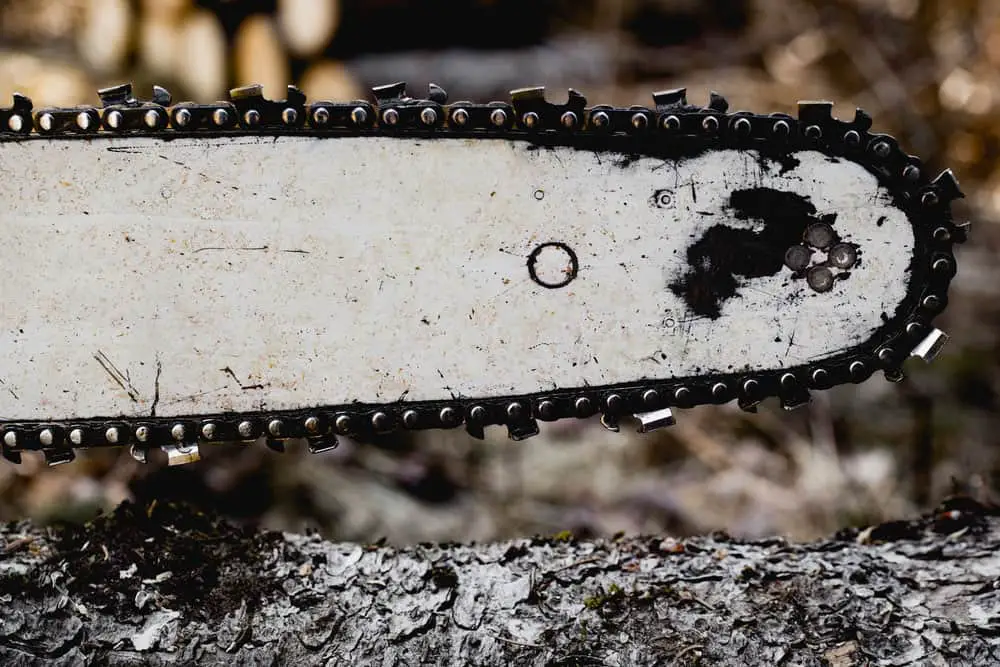

Are Chainsaw Bars Interchangeable?  A sprocket nose chainsaw.

A sprocket nose chainsaw.

A sprocket nose provides reliability and accuracy for woodcutting since the chain has a smooth spin. These have a laminated structure, making them less durable. So you will need to maintain it regularly by inserting grease in the grease hole to prevent jamming. The sprocket serves as the base for the chain, which fits alongside the bar.

On the other hand, the hard-nosed bar does not jam, making it ideal for construction, rescue, and dirty work environments. A complex nose bar can also perform exceptionally well in harsh conditions since it consists of a strong alloy and a piece of solid steel.
This type features a solid tip with sliding contact placed in the middle of the bar and chain.

4. A Guide to Buying the Right Chainsaw Bar


Are Chainsaw Bars Interchangeable?  A new bar can be purchased in-store or online.

A new bar can be purchased in-store or online.

·        Choosing a replacement chainsaw bar

First, visit a nearby hardware store to replace any chainsaw bar. Ensure you bring the original bar so the workers can find a replacement for that model. Another option for a replacement bar involves ordering online. You must obtain the proper measurements printed on the bar information stamp. In this case, you must provide the bar length, gauge, mount type, and pitch, along with the chainsaw brand and model. Refer to the manufacturer’s website for bar compatibility with your specific chainsaw model.

·        Buying a different guiding bar

However, you may even decide to install a guiding bar differing from the original model or brand. This also involves choosing a different bar length, which must be the same as the motor. Consult the owner’s manual for size compatibility. Otherwise, a lengthy bar impacts the overall chainsaw functionality due to additional engine stress. You can also adjust the bar gauge, switching to a different type, which must fit the chain. Moreover, the drive sprocket and chain pitch must match the chainsaw power head. Finally, you can purchase a new bar after considering the mentioned specifications.

Conclusion:

Do you have any questions regarding the chainsaw bar and its interchangeability? Feel free to contact us! Do you have any questions regarding the chainsaw bar and its identity? Feel free to contact us! Overall, you can fit your old chainsaw bar onto a different model as long as it meets specifications.
