Cold Saw Blade

CUSTOM COLD SAW BLADE

--Manufacturer for your Specific Needs & Application

  • NCcuttingtools has extensive experience in meeting the customer’s specific custom needs.
  • Provide you with the most various cutting tools.
  • We are an excellent strategic OEM partner of many famous companies.
Cold saw blade

COLD CIRCULAR SAW BLADE

-- About Cold Cut Saw Blades

  • The cold saw blade is a metal cutting tool . that you can use to cut metals at different speeds. It has a unique teeth configuration. This configuration makes it possible for the blade to cut effectively at low rates. The combination of the low-speed metal cutting and teeth configuration allows fast heat dissipation during cutting. This feature makes the cold saw blade very suitable for cutting to prevent overheating. With its coolant system and low RPM blade speed, the cold saw blade can provide extremely high cutting quality in fast and efficient operation. The cold circular saw blade is ideal for cutting tubes, it can process throughout the material, leaving a smooth, burr-free surface. In the saw blade industry, many professionals are more willing to choose cold saw blades to cut metal materials.
  • Cold saw blades are used for cutting ferrous and non-ferrous metals. Their structural composition offers you more during the cutting process. In essence, there are a few standard features that make the cold saw blades advantageous.

-- Manufacturer for your Specific Needs & Application

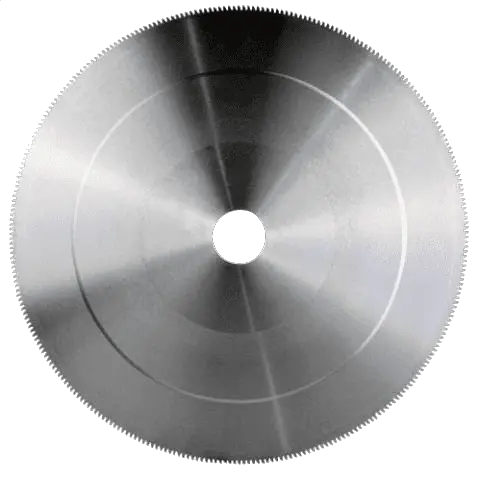

HSS Circular Cold Saw Blade

  • HSS circular saw blades are famous for cutting ferrous metals. Because of their composition, they allow the cutting of metals seamlessly at about 350 SFM. These blade series have low heat generation and resistance to wear. Hence, they are suitable for cutting at high temperatures.
  • HSS cold saw blades comprised of either M35 tool steel or M2 tool steel. Also, the HSS cold saw blade’s heat treatment process allows it to accommodate shock and wear without failure. However, the flip side of this treatment is to increase brittleness. Manufacturers often add cobalt alloy and wear-resistant coatings to improve the performance of this blade.
HSS
TCT blade

TCT Circular Cold Saw Blade

  • Tungsten carbide-tipped or TCT cold saw blades consist of tungsten carbide and alloy steel on the teeth. This cold saw blade undergoes a heat treatment up to 38/42 HRC. As a result, they can operate at higher thermal conditions than solid HSS. Also, the TCT blades can run at higher surface speeds compared to the HSS blades. Hence, they can cut metals faster while still maintaining an acceptable chip load per tooth.
  • The TCT saw blades are suitable for non-ferrous alloys. Nevertheless, they can also use for cutting ferrous metals.

Cold Circular For Sale

The following is the cold circular saw blade selection chart, please choose according to your requirements.

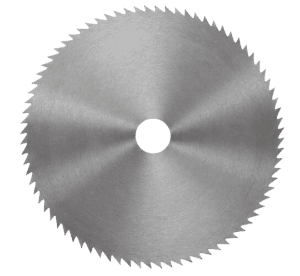

HSS SAW BLADE
HSS SAW BLADE



Features: Corrosive resistant, highly durable, sharp edges.

Application: Cutting non-ferrous metal and plastic where maximum cutting life between sharpening is required.
  • Dry cuts-eliminates the need for lubricants, saving time and money
  • Cool cuts-reduces heat build-up in cut material, leaving material cool to the touch and able to be handled right away
  • Clean cuts-eliminates burrs, leaving safer to handle material and no need to clean up after a cut.
  • Thin kerf design-faster cuts, better precision, and better cuts per charge

TCT BLADE 1
TCT BLADE 1



Features: For general purpose cutting off operation.

Application: Wood, non-ferrous metals, and plastics.
  • For cross-cutting, ripping off all types of softwood, hardwood, panels, laminates.
  • Cutting along the grain of natural massive wood.
  • Professional quality construction grade hacksaw blade with precise sharp titanium carbide tip.
  • Thin kerf can make the surface smooth and clean with minimal waste. The lower hook angle can improve the surface quality of the cut.
(D)mm Z (B)mm
850 60-144T 14
900 60-144T 16
1000 60-144T 20
1100 60-144T 22
1200 60-120T 24
1300 60-120T 25.5
Additional dimensions and executions upon request.

TCT SAW BLADE FOR CUTTING WOOD
TCT SAW BLADE FOR CUTTING WOOD



Features: Combined with ATB (spare tip cone) offset tooth design. This can make the cutting smoother, and the chance of cracking the wood surface is much less.

Application: For cutting unprocessed chipboard and plywood.
  • For cross-cutting, ripping off all types of softwood, hardwood, panels, laminates.
  • Cutting along the grain of natural massive wood.
  • Fully hardened steel blade body -delivers accuracy and resists bending and deflection for true cuts.
  • Tungsten carbide teeth have excellent wear resistance and heat resistance. The positive cutting angle can quickly and effectively remove chips and swarf.
(D)mm (B)mm (B)mm Z Grinding (B)mm
110 1.8 1.2 30/40 ATB 20
125 1.8 1.2 30/40 ATB 20
150 2.2 1.4 40/60 ATB 25.4
180 2.2 1.4 40/60/80 ATB 25.4
200 2.4 1.6 40/60 ATB 25.4
230 2.4 1.6 40/60/80/100 ATB 25.4
250 2.6 1.8 40/60/80/100/120 ATB 25.4
305 3.2 2.2 40/60/80/100/120 ATB 50
350 3.4 2.4 40/60/80/100/120 ATB 50
400 3.4 2.4 40/60/80/100/120 ATB 50
Additional dimensions and executions upon request.

TCT BLADES FOR CUTTING WOOD 1
TCT BLADES FOR CUTTING WOOD 1



Features: Combined with ATB (spare tip cone) offset tooth design. This can make the cutting smoother, and the chance of cracking the wood surface is much less.

Application: For cutting unprocessed chipboard and plywood.
  • For cross-cutting, ripping off all types of softwood, hardwood, panels, laminates.
  • Cutting along the grain of natural massive wood.
  • Fully hardened steel blade body -delivers accuracy and resists bending and deflection for true cuts.
  • Tungsten carbide teeth have excellent wear resistance and heat resistance. The positive cutting angle can quickly and effectively remove chips and swarf.
(D)mm (B)mm (B)mm Z Grinding (B)mm
110 1.8 1.2 30/40 ATB 20
125 1.8 1.2 30/40 ATB 20
150 2.2 1.4 40/60 ATB 25.4
180 2.2 1.4 40/60/80 ATB 25.4
200 2.4 1.6 40/60 ATB 25.4
230 2.4 1.6 40/60/80/100 ATB 25.4
250 2.6 1.8 40/60/80/100/120 ATB 25.4
305 3.2 2.2 40/60/80/100/120 ATB 50
350 3.4 2.4 40/60/80/100/120 ATB 50
400 3.4 2.4 40/60/80/100/120 ATB 50
Additional dimensions and executions upon request.
