Cutting Marble manufacturer

  • Marble is a kind of metamorphic rock mainly composed of CaCO2, more than 50%, and MgCO3, Cao, MnO, SiO2 and other components formed by high temperature and pressure in the crust.
  • Marble generally has a Mohs hardness between 2.5 and 5, which is softer than granite.

1,000+ Customers Over The World

After ten years of powering subjects, we’ve fine-tuned the custom wiring loom services and are committed to helping you simplify your workflow, launch faster, and make your business boom.

Diamond Saw Blade

Specification:

  • Diameter: 75mm-3500mm
  • Bore: 20mm-60 mm
  • Segment: 1.2 mm- 7 mm Thickness, 5 mm – 15 mm Hight

Segment Blade

The commonly used marble rough cutting saw blade can discharge the scraps to improve the processing efficiency when cutting at high speed. Longer service life, replaceable segment

Turbo Blade

The best choice for personal use, the minimum size can be achieved 1.2mm , more balanced use.

Rim Blade

High sharpness, mainly used in fine marble processing, the cutting interface is very smooth, the edge damage is small, also can be used for ceramic processing.

Wire Saw

  • It is mainly used in the cutting of marble raw stone, a more energy-saving cutting method.

Specification:

  • OD of the Wire:
  • 2.2mm-11.5mm
  • Line Speed:
  • 18-28m/s

Diamond Gang Saw

Specification:

  • Thickness:Length*180mm*3mm/3.5mm
  • Segment:

important things you should know

Questions And Answers

A: Usually caused by dirty water, insufficient water supply to blade, low powered drive motor, worn bearings or shaft, incorrect blade for material being cut.
A: Check bearings and spindle for wear,machine alignment and equal water supply to both sides of blade.
A:Ⅰ.Incorrect mounting of blade/remount blade correctly. Ⅱ.Worn bearings or bent shaft/replace worn bearing or blade shaft. Ⅲ.Blade RPM too high or incorrect tension/ensure blade is running at correct RPM.
A:Ⅰ.Blade becoming glazed due to use on material too hard for bond/ To sharpen balde,make fast (3-4m/min) shallow (3-10mm deep) passed in the material being cut, or in sandstone or asphalt for quicker results. Ⅱ.Excessive cutting pressure, high shaft RPM, low machine HP or drive belts loose/ tune engine according to manufacturer’s manual.
A:Ⅰ.Blade too hard for material being cut/use proper blade specification for material being cut. Ⅱ.Overheating due to lack of water/check water feed system and make sure the water flow is adequate on both sides of the blades. Ⅲ.Blade twisting or jamming in cut/keep sawing straight when the blade working(concave blade exceptional). Ⅳ.Out of round blade/replace worn bearing, realign blade shaft or replace worn blade arbor. Ⅴ.Incorrect blade tension/ensure blade is running at correct RPM. Ⅵ.Excessive cutting speed/slow down the cutting speed. Ⅶ.Undercutting of steel center/use sufficient water to flush out the cut or choose blade with protective teeth.
A:Ⅰ.Incorrect mounting of blade/remount blade correctly. Ⅱ.Worn bearings, spindle or blade arbor/replace worn bearing, realign blade shaft or replace worn blade arbor. Ⅲ.Blade too hard for material being cut/use proper blade specification for material being cut.
A: Abrasion of steel center due to highly abrasive material being cut/use sufficient water to flush out the chipping or choose blade with protective teeth.
A:Ⅰ.Excessive cutting pressures/slow down the cutting speed and keep correct feed rate. Ⅱ.Incorrect blade tension/ensure blade is running at correct RPM. Ⅲ.Jamming or twisting in cut/keep sawing straight when the blade working(concave blade exceptional). Ⅳ.Overheating/check water feed system and make sure the water flow is adequate on both sides of blades. Ⅴ.Blade too hard for material being cut/use proper blade specification for material being cut.
A: Blade too hard for material being cut/use proper blade specification for material being cut.
A:Ⅰ.Blade incorrectly seated/remount the blade correctly. Ⅱ.Worn flanges or flanges not properly tightened/tighten flanges properly or replace worn flanges. Ⅲ.Blade shaft worn/replace worn blade shaft.
A:Ⅰ.Incorrect mounting of blade/remount blade correctly. Ⅱ.Worn bearings, spindle or blade arbor/replace worn bearing, realign blade shaft or replace worn blade arbor. Ⅲ.Blade too hard for material being cut/use proper blade specification for material being cut.
A:Ⅰ.Blade too hard for material being cut/use proper blade specification for materila being cut. Ⅱ.Overheating due to lack of water/check water feed system and make sure the water flow is adequate on both sides of blades. Ⅲ.Blade twisting or jamming in cut/keep sawing straight when the blade working(concave blade exceptional). Ⅳ.Out of round blade/replace worn bearing, realign blade shaft or replace worn blade arbor. Ⅴ.Incorrect blade tension/ensure blade is running at correct RPM. Ⅵ.Excessive cutting speed/slow down the cutting speed. Ⅶ.Undercutting of steel center/use sufficient water to flush out the cut or choose blade with protective teeth.

Diamond Saw Blades for Cutting Marble: Everything You Need to Know

You’ve had problems with cutting marbles safely and cleanly, especially when it comes to cutting through marble slabs, blocks, floors or walls. Cutting a slab marble the right size for the kitchen top.

it’s all going steady till “crack” the marble cuts right through the middle due to the blades or techniques that you were using, nothing is ever as painful as that, as you’ve not only wasted effort in cutting it, but you’ve also wasted resources. It will seem such a challenging and Herculean task if you do not have the right diamond cutting blade.

If you want to cut your marble without it getting damaged either by chipping or breaking, we’ve got the solution for you.

To get a clean and safe cut of your marbles, you need the best of the best diamond saw blades. How do you know the ones to choose from the vast array of diamond saw blades on display? Very simple. You could always come away with a clean and smooth cut, if only you know the right blade and right techniques to use. We’ll be giving you tip and issues to consider before purchasing a diamond saw blade.

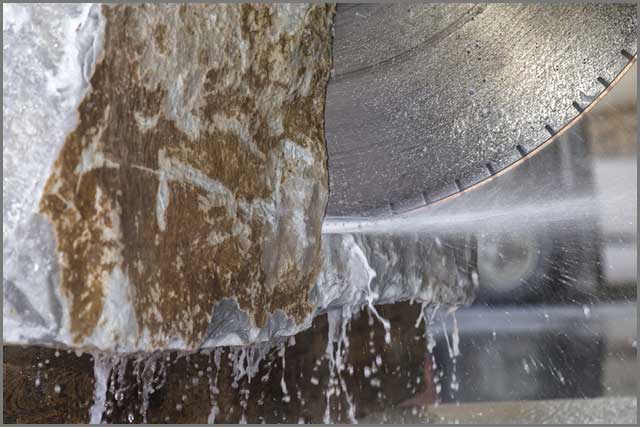

cutting marble

Section 1: 4 Big Questions to Consider Before Buying a Diamond Saw blade

Before purchasing a diamond saw blade, the things you need to consider are these:

  • What is the right blade to use for the cutting?
  • What is the thickness of the marble you’re cutting?
  • What price range are you aiming for among other things?

The Thickness of the marble:

Marbles come in different sizes, and for that, not every one types of diamond saw blades can be used. For that, you need to know the size or thickness of the marble you want to cut.

To cut a thin slab of marble for a countertop, you would have to use a diamond blade that comes in a circular saw. For a marble that is more than 16 inches, you cannot make use of a tabletop wet saw blade, as it will just not cut at all.

cutting marble                                                                          (The thickness of the cutting marble)

Right Diamond Saw Blade:

Diamond saw blades for marble cutting is different from every other diamond saw blades, as they have a specific function to cut just marbles.

As marble is a highly crystalline form of limestone, the blades used for it’s cutting are manufactured especially, and Vacuum Brazed – Electroplating blades have their synthetic diamond particles deeply rooted in their metal coating, they come in length so thin that they amount to 10 micrometres thick, and they are mainly for precise cutting.

Vacuum Brazing, on the other hand, is made with the synthetic diamond particles on the outer edge of their circular steel blade welded in a vacuum brazing furnace, and they are specially made to cut wide varieties of materials such as steel, iron, and concrete. Diamond blades for cutting marble have their diamonds embedded or on the outer side.



Blade thickness:

Some marbles are very thick. When you want to reduce such materials, consider the width of the blade. The thickness of the blade determines the hardness, and the thicker blade cuts have higher precision and better performance because it produces greater stiffness. But when you consider the thinner cutting factor in making furniture, you might want to use a smaller blade.

Price Of The Blade:

Diamond blade saws over the counter are quite affordable with a new saw blade costing $100 – $30 while renting costs $35 per day or $100 per week. For the best quality of diamond saw blades, you can get them from as low as $19.00 to as high as over $1,000.

Knowing these essential tips will help you in purchasing the right diamond saw blades for your cutting. Why would you want to go for diamond saw blades in cutting marbles?

Let’s give you some of the advantages of using diamond saw blades in cutting marbles.

Section 2: Advantages of Using a Diamond Saw Blade

Apart from it being extremely useful in cutting every hard surface cleanly and smoothly. Diamond saw blades are popular in the construction industry because of its delicate and clean cutting amongst the following:

  • It doesn’t get stuck in the marble-like other saw blades.
  • It gives a precise and straight cut.
  • It is vibration free which enables it causes little damage to the marble.
  • It is faster in cutting through marble and other hard surfaces.
  • It is one of the best high-quality cutting products and as such is powered with efficiency to function as one.

We’ve brought the best styles of the diamond saw blade, and we’re going to introduce them to you.

Continuous Rim Blade

Commonly referred to as a blade for wet cutting. Generally, we use to cut tiles, marble, and granite. Using water when cutting with a wet cut blade helps the blade longevity. The water cools down the blade from heating, and it also decreases the friction in the cutting zone by flushing out all the debris of the materials cut; it also reduces the dust produced from the cutting.

cutting marble                                                                       (Wet saw cutting marble)

Segmented Saw Blade

The segmented Saw blade features multi-application saw blades that are suitable for fast, free and smooth cutting. Can cut bricks, tiles, bricks, marble, concrete, granite, stone and many other materials. Operated with a masonry saw, table saw, and circular saw. Diameter is ranging from 4″ to 14″, it has various arbour sizes and segmented specifications that are always available upon request.

Section 3: Method for Cutting Marble By the Diamond Saw Blade

It is quite essential to know about the methods and techniques of cutting with the diamond saw blades. Buying equipment and not knowing how to use it is the same as not having the machine.
The first thing to do is to read the instructional materials that come with the product. Reading it keeps you safe from injuring yourself in the process of operation. Review everything, from the set up to the instructions to the safety tips.
The technique of cutting marble is wet cutting, so next, we have to ensure continuous water supply.

cutting marble                                                                        (saw cutting marble)

A wet blade must always be we’re to keep it from overheating. Keeping it moist makes the blade efficiently cut consistently and correctly.

Before turning on the saw make sure that it is wet if it is not making sure the blade is entirely wet. To connect your saw blades to water, you could always read the instructional material in the product’s manual, or you could fill up its separate water tank or get it connected to a hose for constant water supply.
Different cutting styles come with different skills of cutting, but before any cut, We hope that you can equip your protective gear. After all, it is an essential skill of all. We must emphasize that you must use the correct personal protective equipment before operating a powerful machine. We have a straight line and curved marble cutting techniques. Emphasizing this is not excessive.

For the straight line marble cutting, here are tips to follow:

  • Adjust the fence on the saw blades to keep your cut straight.
  • Draw a 2.5 cm (1 inch) line along your mark, keeping the marble face down.
  • Flip the marble tile so that it faces up, then glide the marble tile through the saw.

For a curved marble cutting:

  • Change the blade in your grinder to a diamond blade for efficiency and sophistication.
  • Place your marble on pieces of thick foam or wood, preferably 2″ to keep the tiles from getting scratched in the process of cutting.
  • Cut the full length of the tile through the middle
  • Walk through the tiles again along the lines. Whatever cutting style you use, always make sure that your blades are thoroughly wet to enhance its capacity and efficiency.
  • For more: cutting tips click here.

section 4: We Look for Real Feedback From Some Users

Here’s what a couple of users had to say about using diamond saw blades to cut marbles.

  • Re: Diamond saw blades used for cutting marbles.
    Helpful. I was cutting some tiles with my cheap wet saw with a segmented diamond blade and was getting chipping along the cut. And I remembered that I had used a continuous blade. I’m guessing that’s my issue here, luckily every cut I’ve done so far will be was hidden by the trim. I’ll have to pick up a continuous blade for the visible stuff.
    Anonymous
  • I used this on my disk grinder to cut some marble tile. It cut smoothly and quickly, and I have no complaints whatsoever. I was also able to use the edge of the blade to smooth and grind the marble a little bit. I needed to cut a curve in a tile to fit around the edge of a bathtub, and it fit nicely.

These feedbacks warmed our hearts but got us thinking hard. Is there an alternative product to the diamond saw blades? Is there a product that can replace it? In our extensive search, we’re proud to say we found none (as of now). Although we have the Carbides (boron, silicon, titanium, tungsten, etc.), and High-speed steel, they cannot operate on the level of the diamond saw blades.

Summary:

Diamond Saw Blade is the right tool to use for cutting marbles to give it that smooth and beautiful cutting you so much desire. If you want to learn more about this article, or if you’re going to know about buying a diamond saw blade, you can contact us.
